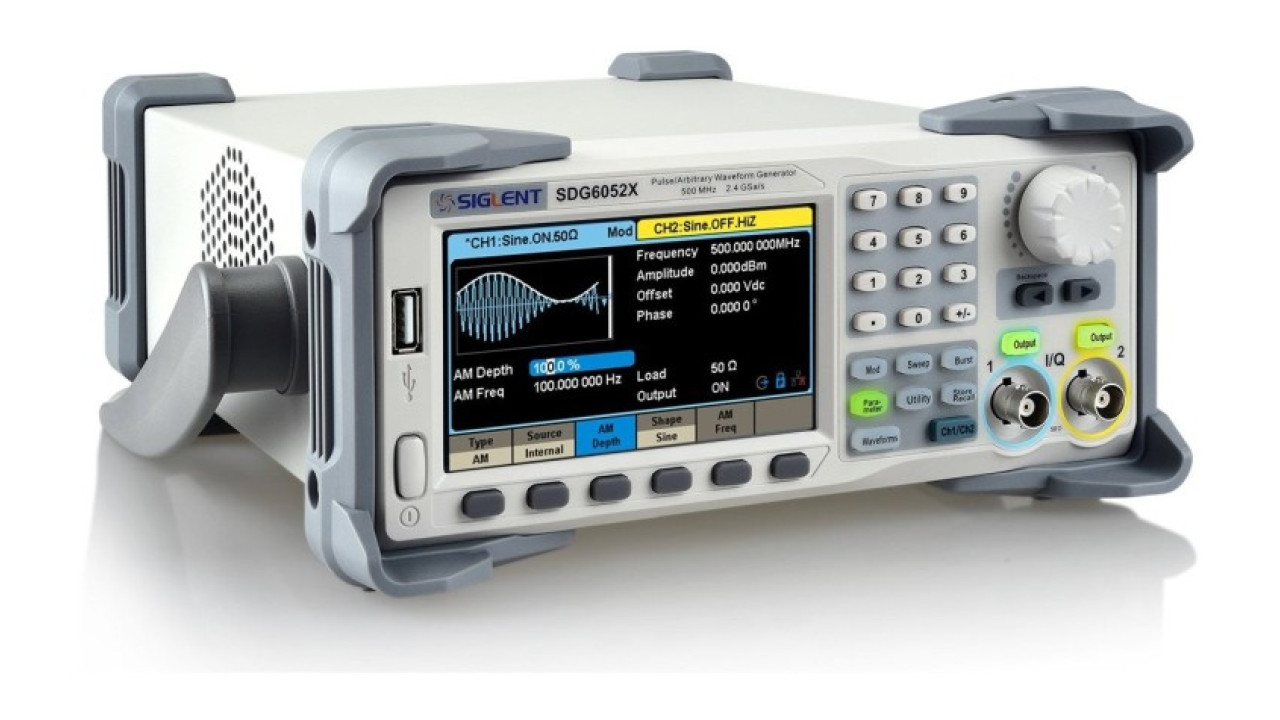

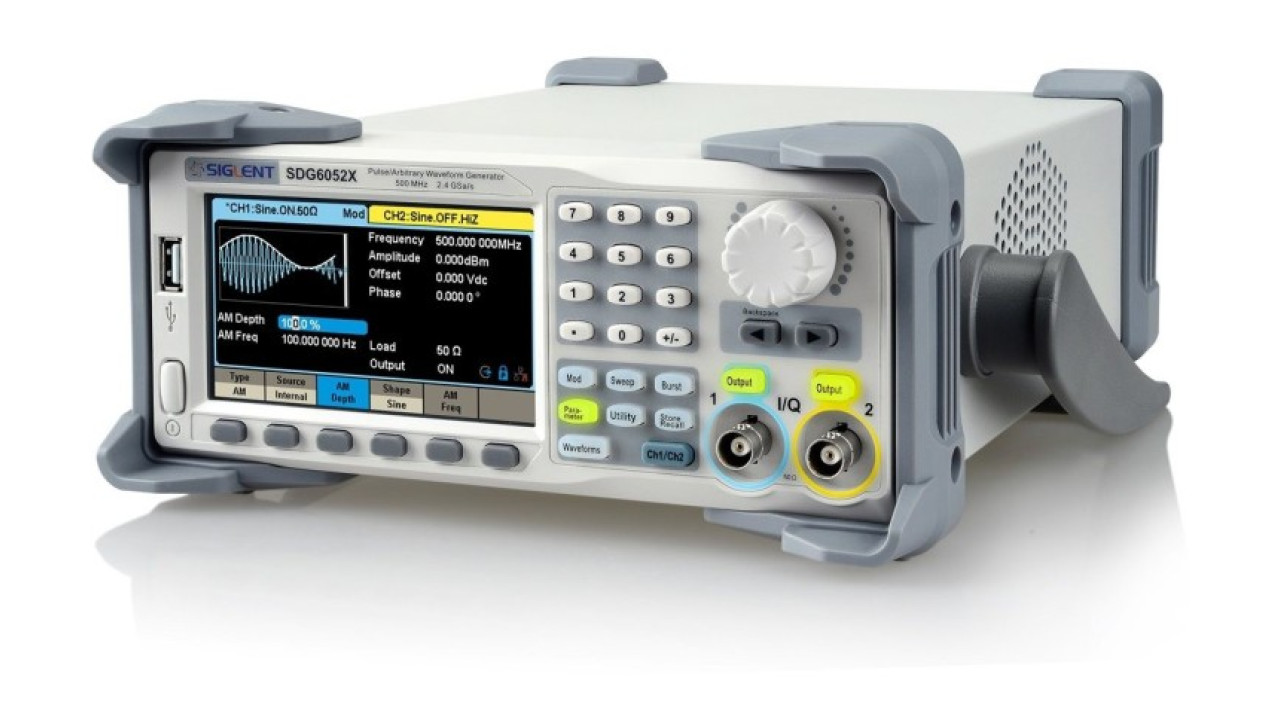

High quality 2 channel pulse/arbitrary waveform generator (350MHz, 2.4GSa/s, 16bit, 20Mpts)
SIGLENT's SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
Feature and Benifits
- Dual-Channel, 350MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
- High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
- Multi-function signal generator, meeting requirements in wide range (Continuous Wave Generator, Pulse Generator, Function Arbitrary Waveform Generator, IQ Signal Generator (optional), Noise Generator, PRBS Generator)
- Sweep and Burst function
- Harmonics function
- Waveform Combining function
- Channel Coupling, Copy and Tracking function
- 196 built-in arbitrary waveforms
- High precision Frequency Counter

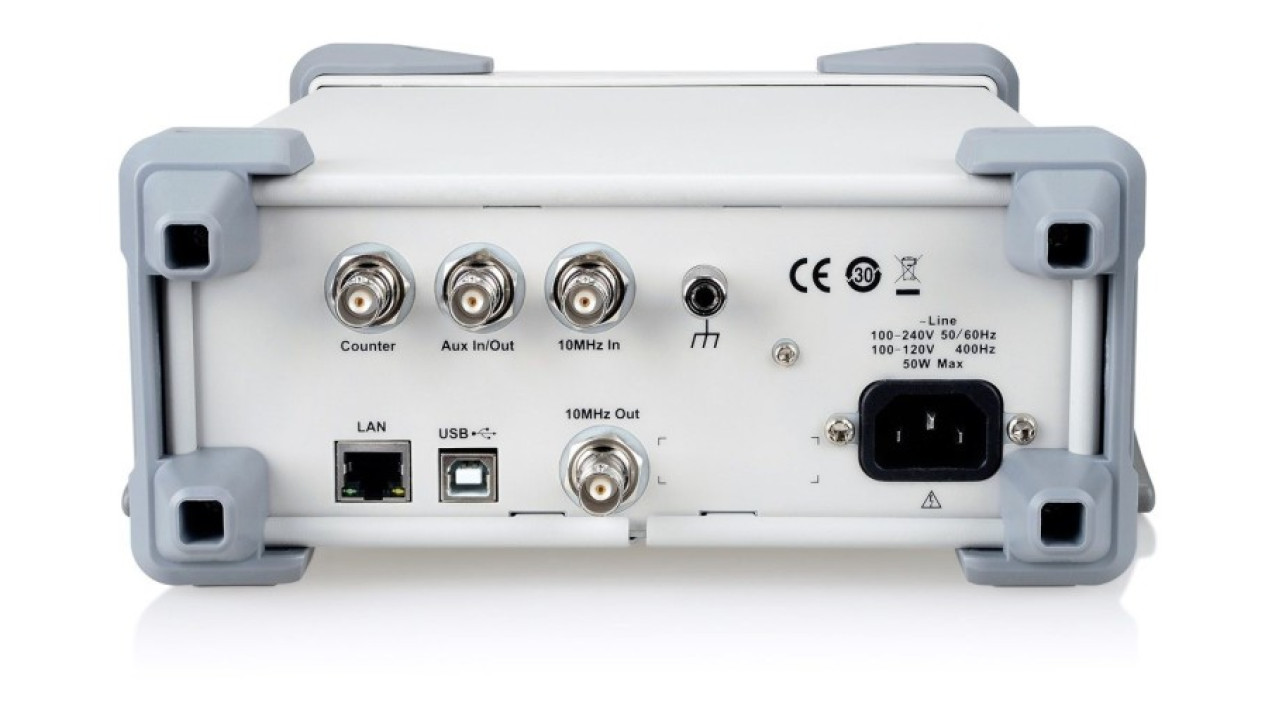

- Standard interfaces include: USB Host, USB Device (USBTMC), LAN(VXI-11, Socket, Telnet). Optional Interface: GPIB

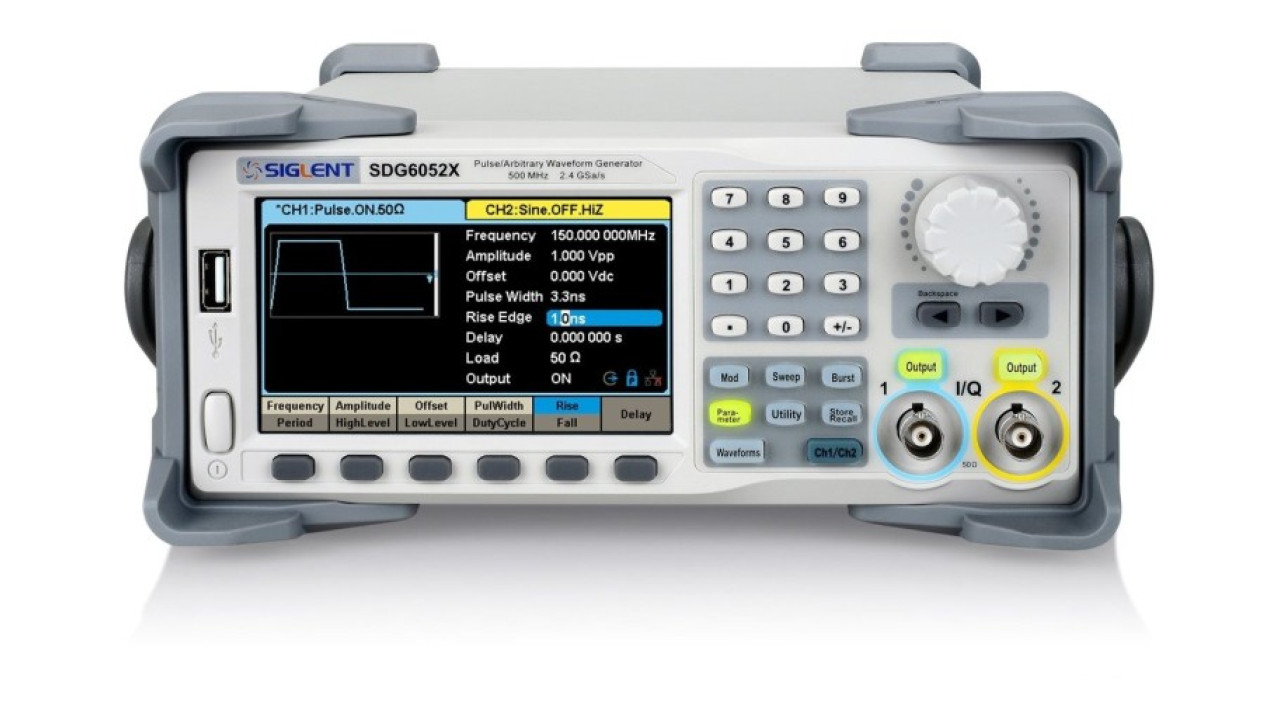

- 4.3" touch screen display for easier operation
Standard Accessories
- Quick Start Guide
- Certificate of Calibration
- BNC Coaxial Cable (2pcs)
- USB Data Cable
- Power Cord
Optional Accessories
- 10W Power Amplifier (SPA1010)
- 20 dB Attenuator (ATT-20dB)
- USB-GPIB Adapter (USB-GPIB)
- Single Instrument Rack Mount Kit (SDG-RMK)
- IQ Signal Generator Function (SDG-6000X-IQ)
