Siglent SHS1062

Siglent SHS1062
Siglent SHS1062 Siglent SHS1062
Výrobce: Siglent
Model: SHS1062
Dostupnost: Rádi dodáme na objednávku
Cena: 32 580 Kč
bez DPH: 26 926 Kč
Množství:
   - NEBO -

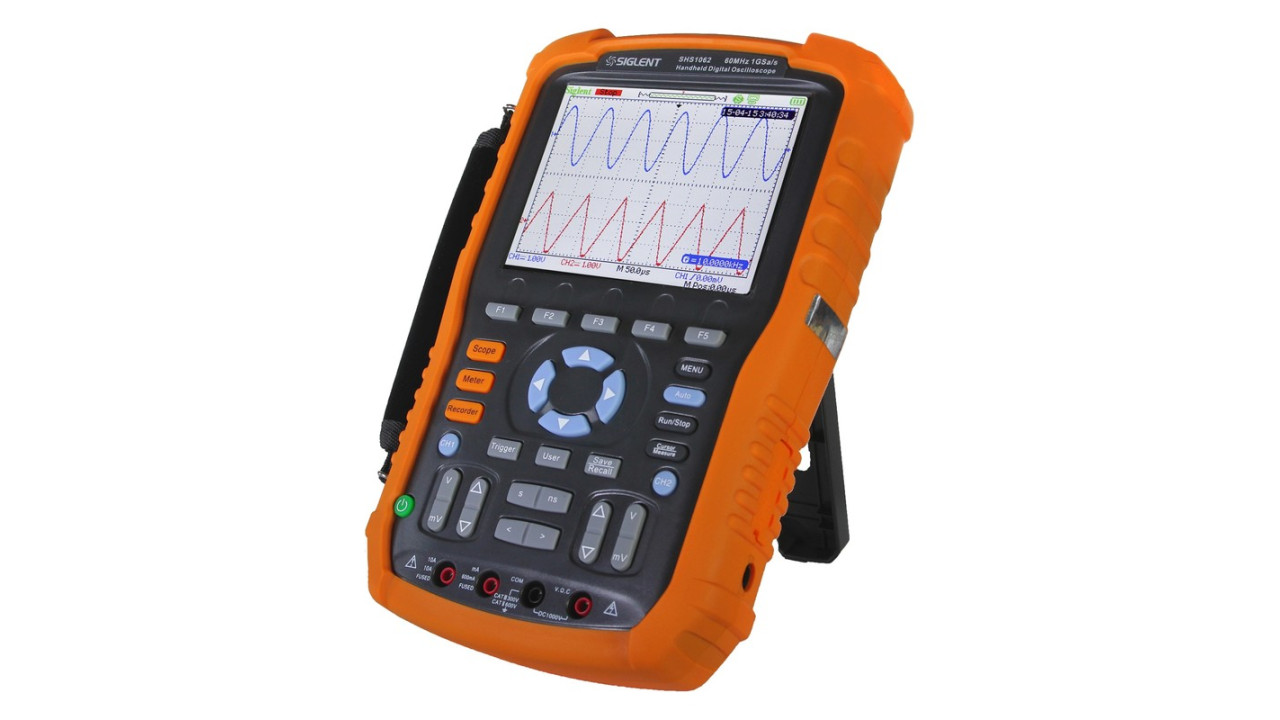

2-channel handheld oscilloscope (2x 60MHz, 1GSa/s, 2Mpts) with isolated channels
Combines oscilloscope, multimeter and recorder in one unit

Siglent's SHS1000-series handheld digital oscilloscopes take advantage of years of SIGLENT research and development. It adopts many dedicated integrated circuits which allows for a simpler layout, low power consumption and a very small footprint.

Feature and Benifits

  • Analog bandwidth 60MHz, 2 analog channels
  • 1GS/s real-time sampling per channel, up to 50GSa/s equivalent sampling rate, 2Mpts memory depth
  • Provide functions as Oscilloscope, Multimeter and Recorder (TrendPlot and waveform Recorder)

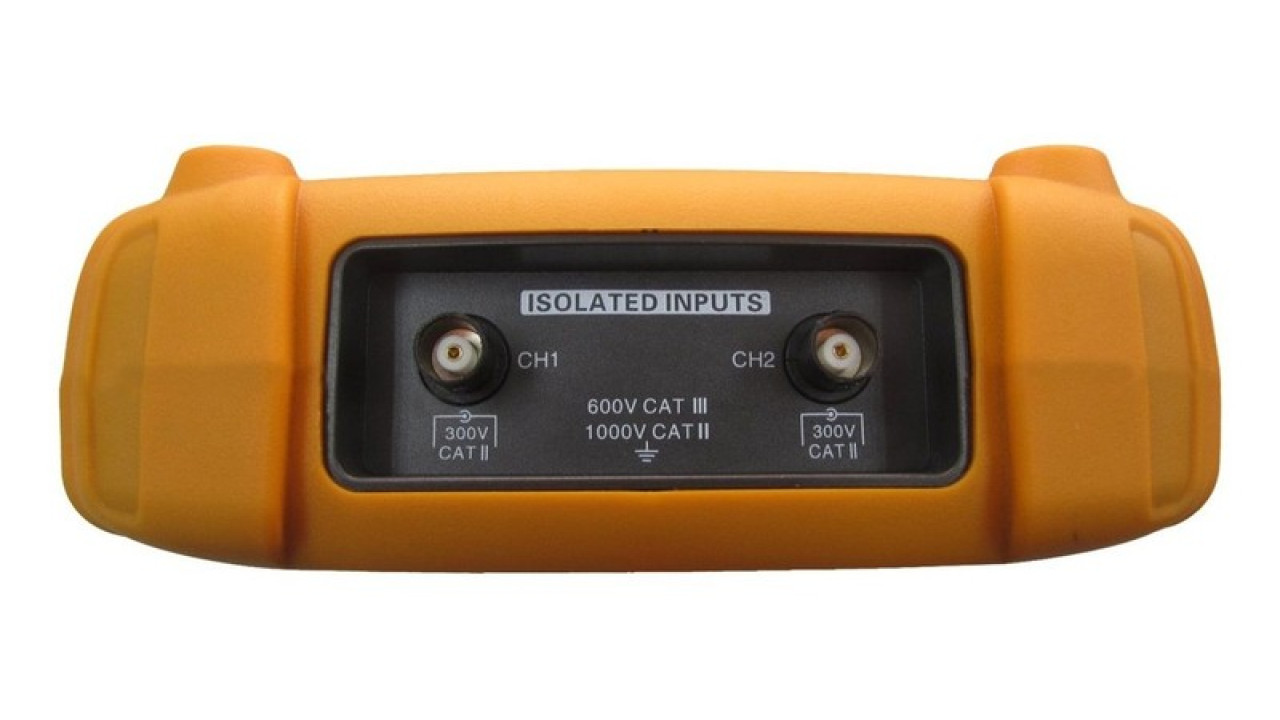

  • SHS1000 Series with patent IsolatedChannel technology provide isolation from ground and isolation between channels
  • CAT II 1000V and CAT III 600V between two channels references, between channels reference and earth ground CAT II 600V and CAT III 300V between channels reference and Multimeter input reference
  • CAT II 300V and CAT III 150V input direct, CAT II 1000V and CAT III 600V input with 10:1 probe
  • 5.7 inch TFT color LCD display
  • 6000 counts Multimeter, provides measurements of DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity
  • Support Scope TrendPlot, Meter TrendPlot and Scope Recorder
  • Automatic and manual trigger modes: Trigger types: Edge, Pulse, Video,Slope and Alternative
  • 32 automatic waveform measurements,3 cursor measure modes
  • Digital Filter functions: Low pass filter,High pass filter, Band pass filter, Band limit filter
  • Math functions: +, - ×, ÷,FFT operations
  • Multiple Language User Interface
  • Standard setup interface: USB Device,USB Host
  • USB storage update, PC communication and PictBridge print are available
  • Rechargeable battery and battery charger / line power adapter included

Standard Accessories

  • A 9V/3A power adapter

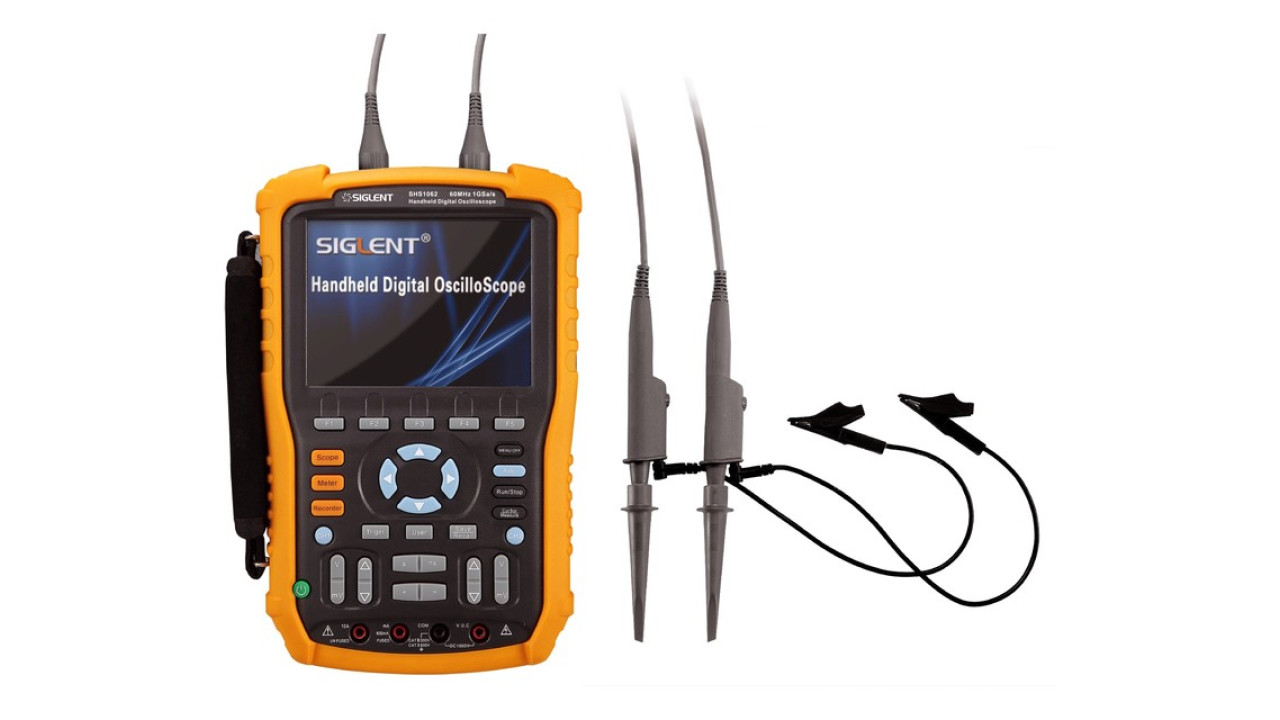

  • Two special 10 :1, CATII 1000V, CATIII 600V, 100MHz oscilloscope probes
  • Two test leads for multimeter
  • USB Data cable

Downloads

datasheet
user manual
