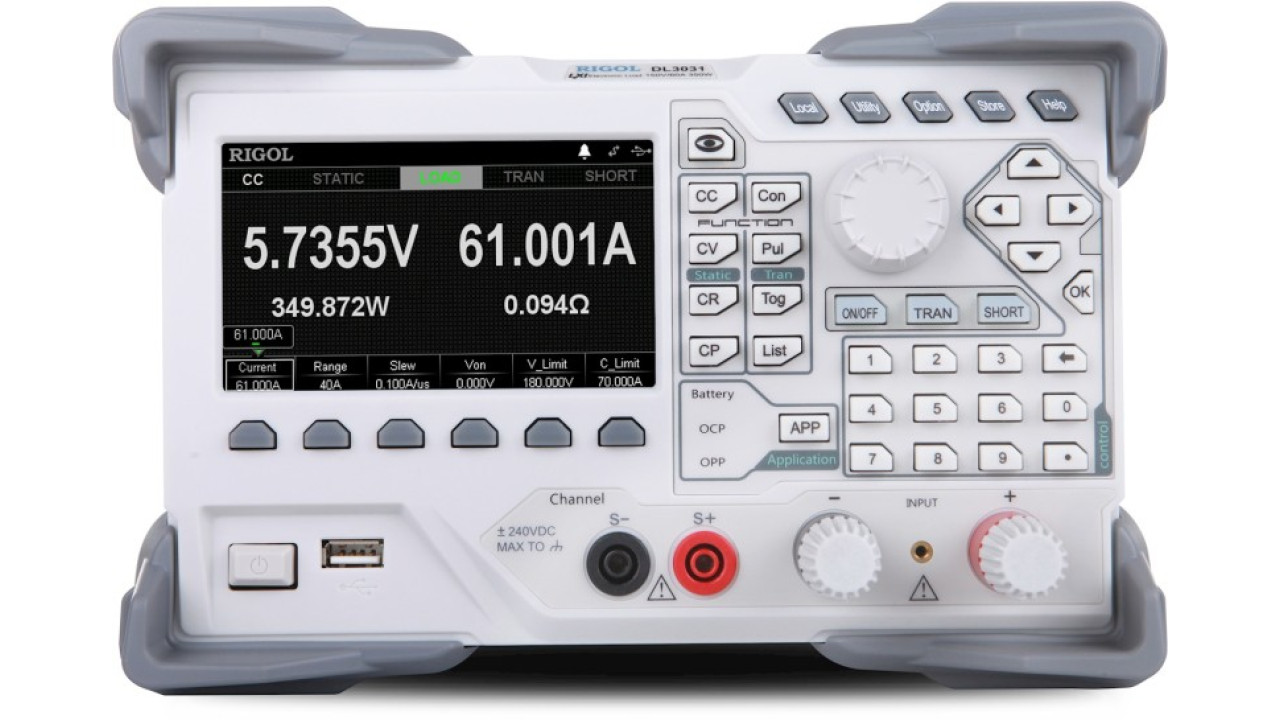

Rigol DL3031

Rigol DL3031
Rigol DL3031
Výrobce: Rigol
Model: DL3031
Dostupnost: Rádi dodáme na objednávku
Cena: 28 430 Kč
bez DPH: 23 496 Kč
Množství:
   - NEBO -

Programovatelná elektronická zátěž (1kanálová, 350W, 0-150V/0-60A, 15kHz 2.5A/μs)

DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.

Feature and Benefits

  • Single channel, DC150 V/60 A, total power up to 350 W
  • Dynamic mode: up to 30 kHz
  • Adjustable current rising speed: 0.001 A/μs to 5 A/μs
  • Min. readback resolution: 0.1 mV,0.1 mA
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Built-in RS232/USB/LAN communication interface
  • USB-GPIB module (optional

Standard Accessories

  • Quick Guide
  • Terminal Shield
  • Fuse 50T-0200H 250V 0.20 A
  • Power Cord

Optional Accessories and Software Options

  • SLEWRATE-DL3 - High slew rate option
  • FREQ-DL3 - High continuous mode frequency option
  • HIRES-DL3 - Readback current resolution
  • DIGITALIO-DL3 - Digital I/O triggering option
  • LAN-DL3 - LAN interface
  • CB-RS232-A - 9-Pin RS232 Cable (female-to-female, cross-over)
  • DL-02 - Terminal Shield (SC-DL3)
  • USB-GPIB-L - USB-GPIB Module USB-GPIB-L
  • CB-SENSE - Sense Cable
  • CB-20A-780MM - 20 A Test Lead
  • CB-40A-780MM - 40 A Test Lead
  • CB-60A-780MM - 60 A Test Lead
  • RM-1-DP800 - DL3000 Series Rack Mount Kit (for a single instrument)
  • RM-2-DP800 - DL3000 Series Rack Mount Kit (for two instruments)

Downloads

datasheet
user manual
